Brake disc rotor part OE 435120603, 43512-06031, 43512-07020, 43512-33040 are used for TOYOTA (AVALON, AVENSIS, AVENSIS, SOLARA, PREVIA) and LEXUS ES. These item is Front axle, OE Standard. OE standard is according to OE plain replacement structure. This type same as OE plain premium quality provides stable braking performance.
Taiwan’s Most Trusted Brand and Leading Manufacturer for Premium Disc Brake Rotors
● Precision Machining
● Safety and Performance
● Automotive industry Quality Standards
Every rotor is manufactured to meet ISO and TS certification as standards in production. Our highly strict quality control is to have a safety trip for drivers. YDL offers a disc brake rotors range with excellent performance, reliability, durability, and comfort in all conditions. Through our dedication to high-quality products and competitive price to meet customer's requests, we have earned good feedback from our clients.
● Anti-Rust Oil
● Increased Brake Durability
● Precision Controlled Surface Finish
● Improved Parallelism
● Dynamically Balanced
Material standard: G3000 ANSI/ASTM, FC250
Can be made as per supplied samples and/or drawings.
| Car Model | TOYOTA
1994-2006 AVALON (X1) 3.0 (MCX10)
1999-2005 AVALON (X2) 3.0 (MCX10R) / 3.0 (MCX20)
2001-2011 AVENSIS VERSO (M2) 2.4 (ACM21) / 2.0 / 2.0 D (CLM20)
1996-2001 CAMRY (V2) 2.2 (SXV20)
1997-2002 SOLARA 2.2 (SXV20) / 3.0 (VDV10) / 3.0 24V (MCV20) / 3.0 V6 (MCV20)
2001-2006 CAMRY (V3) 2.0 (ACV31) / 2.4 (ACV30, ACV36)
2000-2006 PREVIA (R3) 2.0 D-4D (CLR30) / 2.4 (ACR30)
LEXUS
1996-2008 ES (MCV, VZV) 3.0 (MCV30, MCV20)
1989-1997 ES (VCV10, VZV21)300 (VCV10) |
Data/ Size/ Specification/ Dimension (mm)
| Position Axle:
Diameter:
Thickness (TH):
Centring diameter (C):
Number of holes (B):
Overall height (H): | Front
275
28
62
5+2
48.6
|
| OE Part Number | 43512-06030 43512-06031
43512-07020 43512-33040 43512-33041 43512-33042
43512-33043 43512-33060 43512-33080 43512-44011
43512-44020 43512-44021
43512-33090 43512-44010
43512-06020 43512-06040
43512-06070 43512-08020 |
| Compatible/Brand Number | AP 25079 BOSCH 0986478632 0986AB9507 BREMBO 09.5624.10 09.A386.10 09.A386.11 CENTRIC 120.44079 TRW DF1431 |
ISO9001:2018
 | D&B DUNS
|
TUV Rheinland
 |

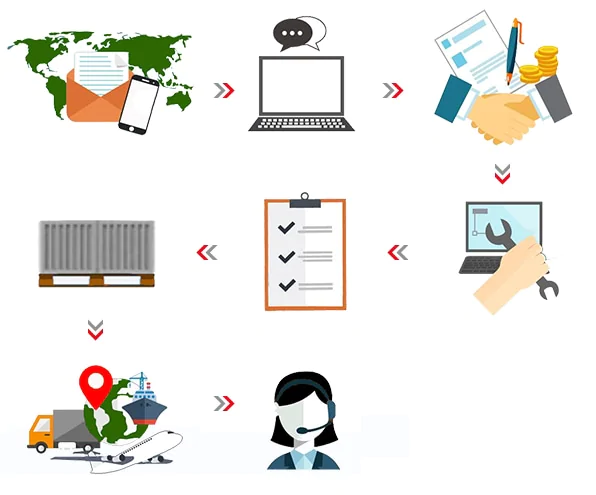

Inquiry → Quotation → Contract/ PI → Payment → Production → QC & Packing → Delivery ( by ship) → Release B/L
